BUY NOW
€235.00

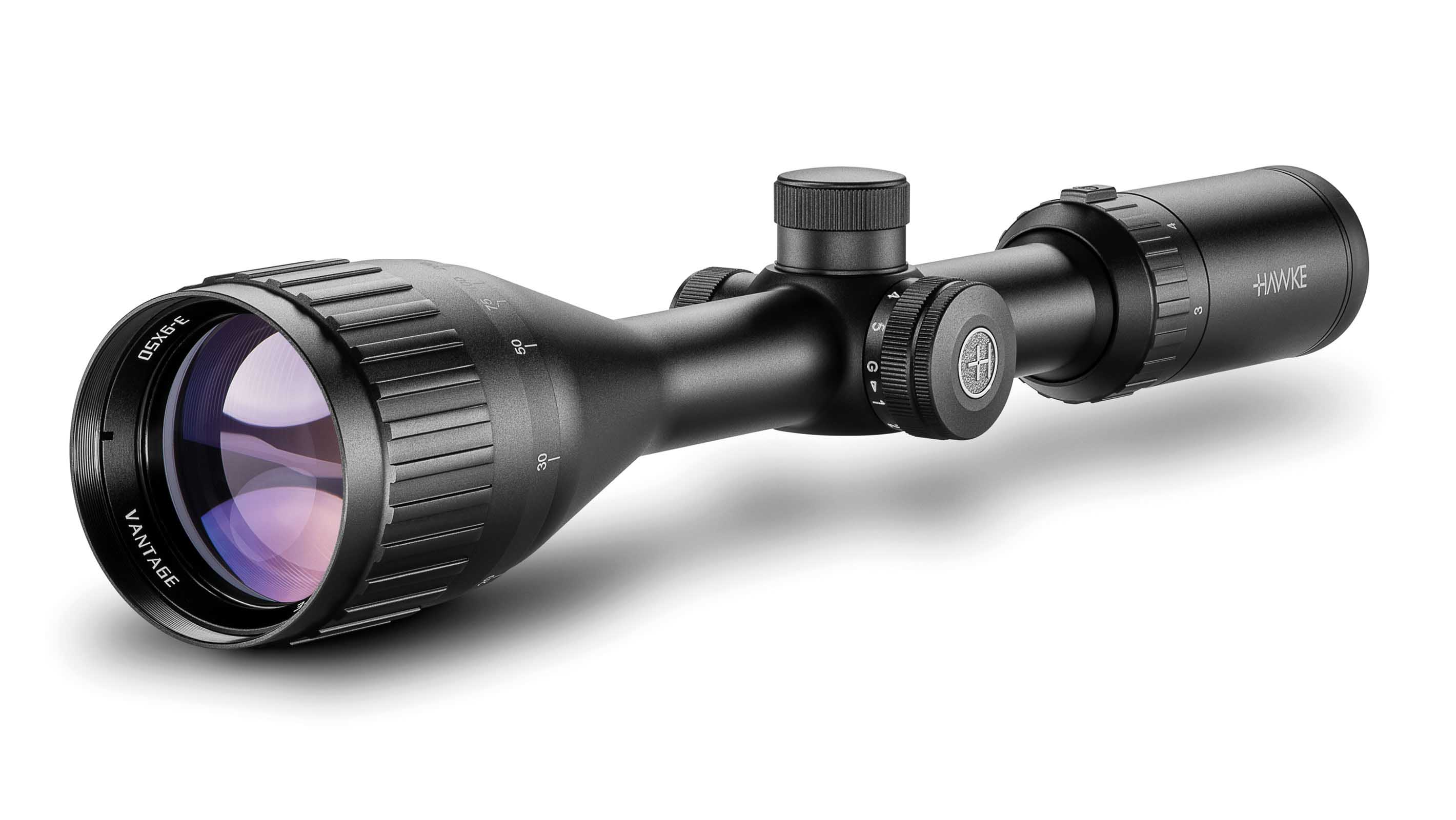

Vantage IR 3-9x50 AO Mil Dot IR

Model: 14232
Barcode: 5054492142323
No stock, delayed despatch
€235.00

Vantage IR 3-9x50 AO Mil Dot IR

Model:
14232
Barcode:
5054492142323
€235.00

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

  • Capped Low-Profile Turrets
  • 1 Inch Mono-tube chassis
  • Adjustable Objective For Parallax Correction
  • Illumination
  • 11 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


  • More Reticle Information
Line Drawing
Product Type
Riflescope
Product Range
Vantage IR
Parallax
Adjustable Objective
Objective Lens
50mm
Reticle
Mil Dot IR
Magnification
3 - 9x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
1 Inch
Illumination
5 Levels - Red/Green
Field of View (ft@100yds)
33.6 - 11
Field of View (m@100m)
11.2 - 3.7
Field of View (°)
6.4 - 2.1
Eye Relief (in)
3.5
Eye Relief (mm)
90
PX/Focus (yds)
10 - ∞
PX/Focus (m)
9 - ∞
Exit Pupil (mm)
16.7 - 5.6
Exit Pupil (in)
0.66 - 0.22
Turret Type
Capped
Turret Caps
YES
Click Value
1/4 MOA
Elevation Turret Clicks (max)
90 MOA
Windage Turret Clicks (max)
90 MOA
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated - 11 Layers
Length (in)
13.8
Length (mm)
351
Weight (oz)
21
Weight (g)
595
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Lens Covers
  • Lens Cloth
  • CR2032 Battery
