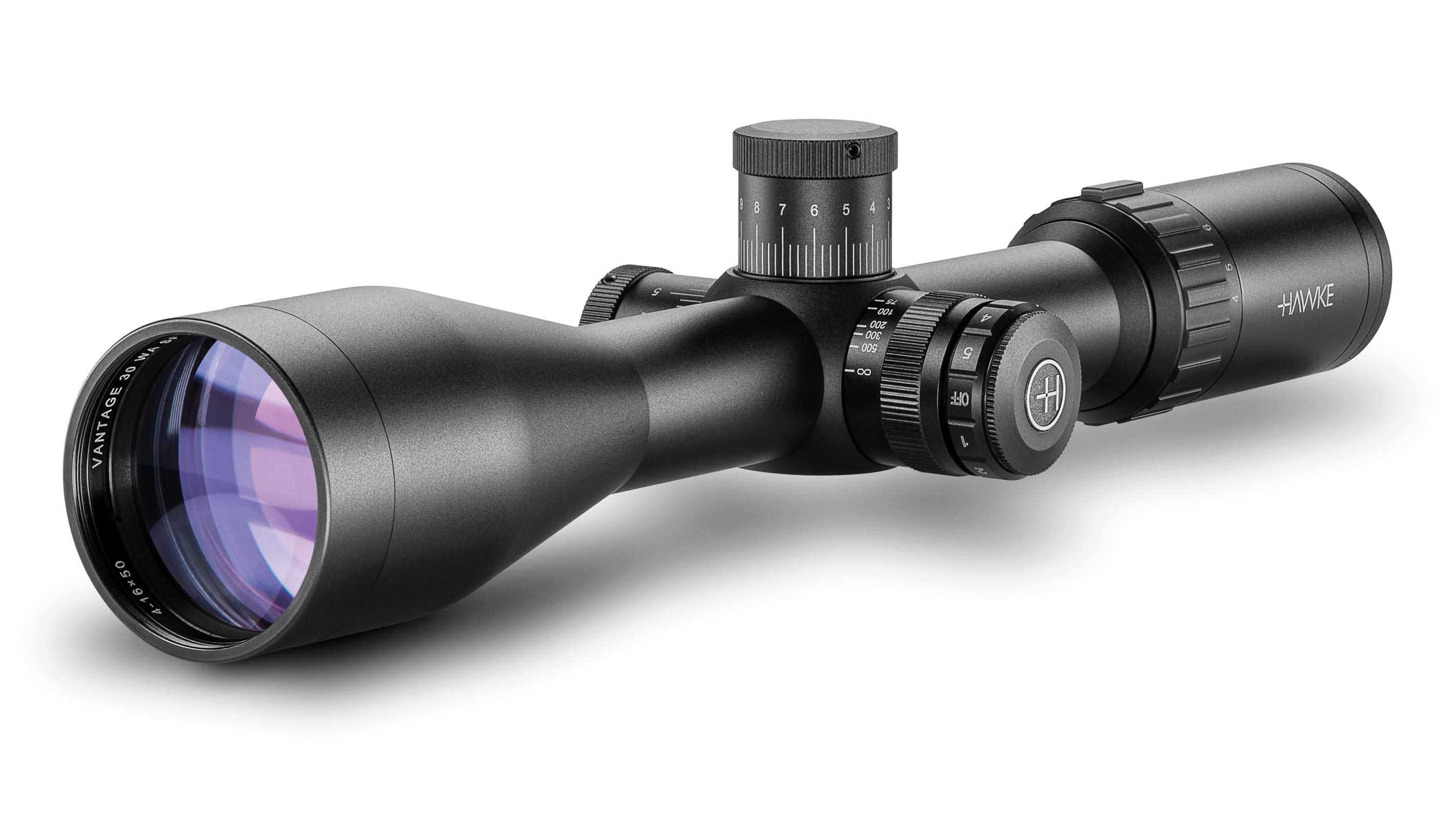

An extensive range of scopes to suit all calibres and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
IR models feature precision glass etched reticles with multi-stage illumination in both red and green.
- Exposed Locking Turrets
- 30mm Mono-tube chassis
- Wide Angle
- Side Focus
- Illumination
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke No-Fault Lifetime Warranty.
Product Type
Riflescope
Product Range
Vantage 30 WA SF IR
Parallax
Side Focus
Objective Lens
50mm
Reticle
Rimfire .17 HMR (16x)
Magnification
4 - 16x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
5 Levels - Red/Green
Field of View (ft@100yds)
28.8 - 7.8
Field of View (m@100m)
9.6 - 2.6
Field of View (°)
5.5 - 1.5
Eye Relief (in)
3.5
Eye Relief (mm)
90
PX/Focus (yds)
10 - ∞
PX/Focus (m)
9 - ∞
Exit Pupil (mm)
12.5 - 3.1
Exit Pupil (in)
0.49 - 0.12
Turret Type
Exposed
Turret Caps
N/A
Click Value
1/4 MOA
Elevation Turret Clicks (max)
96 MOA
Windage Turret Clicks (max)
96 MOA
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated - 11 Layers
Length (in)
13.7
Length (mm)
347
Weight (oz)
26.1
Weight (g)
740
