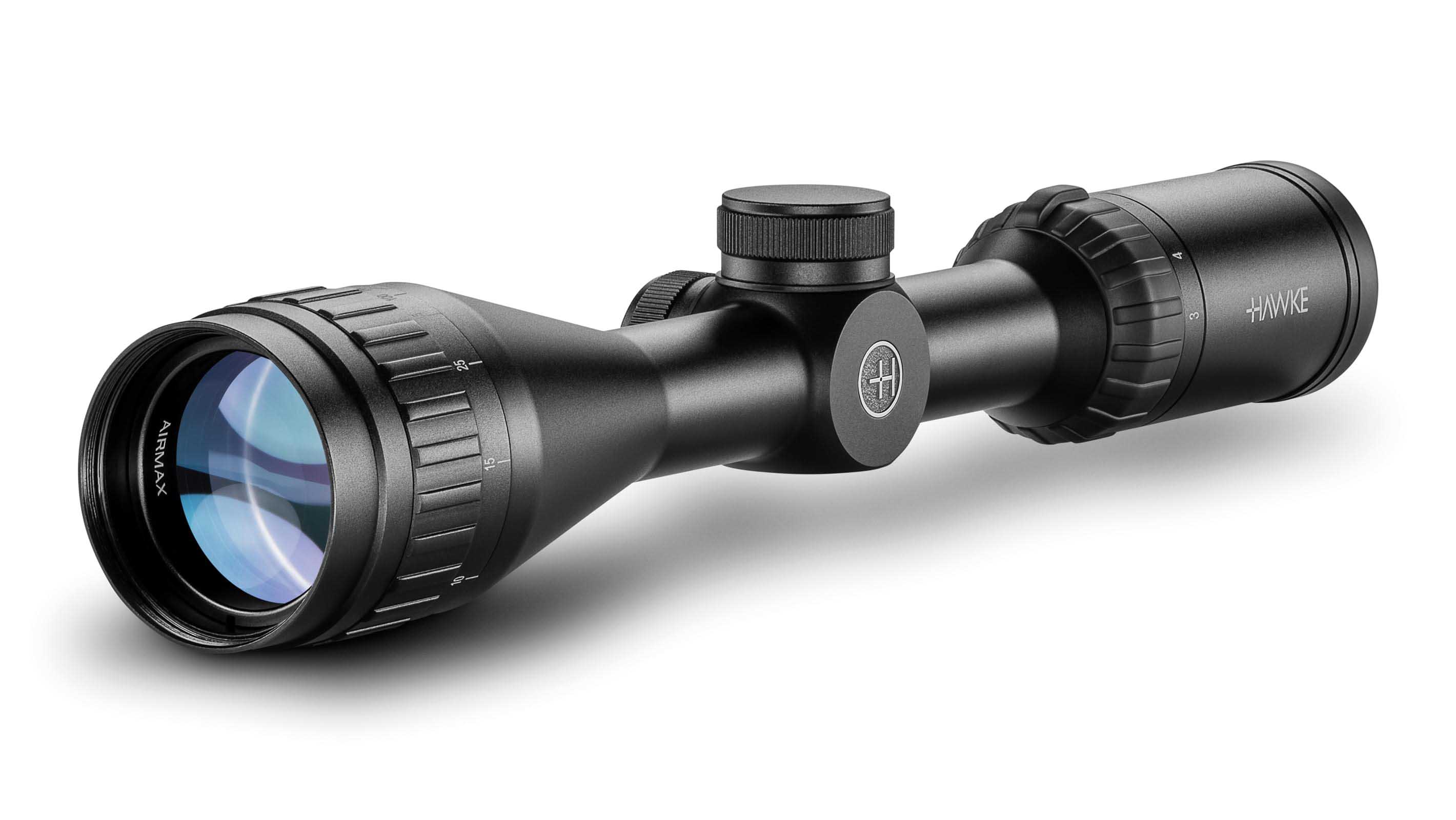

Airmax 3-9x40 AO AMX

Model: 13110
Barcode/EAN: 5054492131105

Availability



No stock, delayed despatch

€279.00
Hawke Logo - Roundal

Airmax 3-9x40 AO AMX

BUY NOW
Modèle:  13110
EAN:  5054492131105

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

  • Capped Low-Profile Turrets
  • 1 Inch Mono-tube chassis
  • Wide Angle
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • AMX reticle designed for airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.


Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Lens Cloth
  • Lens Covers
Product Type  Riflescope
Product Range  Airmax WA
Parallax  Adjustable Objective
Objective Lens  40mm
Reticle  AMX
Magnification  3 - 9x
Optical System  System H2
Focal Plane  SFP (Second Focal Plane)
Scope Tube  1 Inch
Illumination  N/A
Field of View (ft@100yds)  37.2 - 13.6
Field of View (m@100m)  12.4 - 4.5
Field of View (°)  7.1 - 2.6
Eye Relief (in)  3.5
Eye Relief (mm)  90
PX/Focus (yds)  10 - ∞
PX/Focus (m)  9 - ∞
Exit Pupil (mm)  13.3 - 4.4
Exit Pupil (in)  0.52 - 0.17
Turret Type  Capped
Turret Caps  YES
Click Value  1/4 MOA
Elevation Turret Clicks (max)  80 MOA
Windage Turret Clicks (max)  80 MOA
Ocular Type  Fast Focus
Power Selector  Rubber Coated Posi-Grip
Lens Coating  Fully Multi-Coated - 16 Layers
Length (in)  12.2
Length (mm)  310
Weight (oz)  18.3
Weight (g)  519
