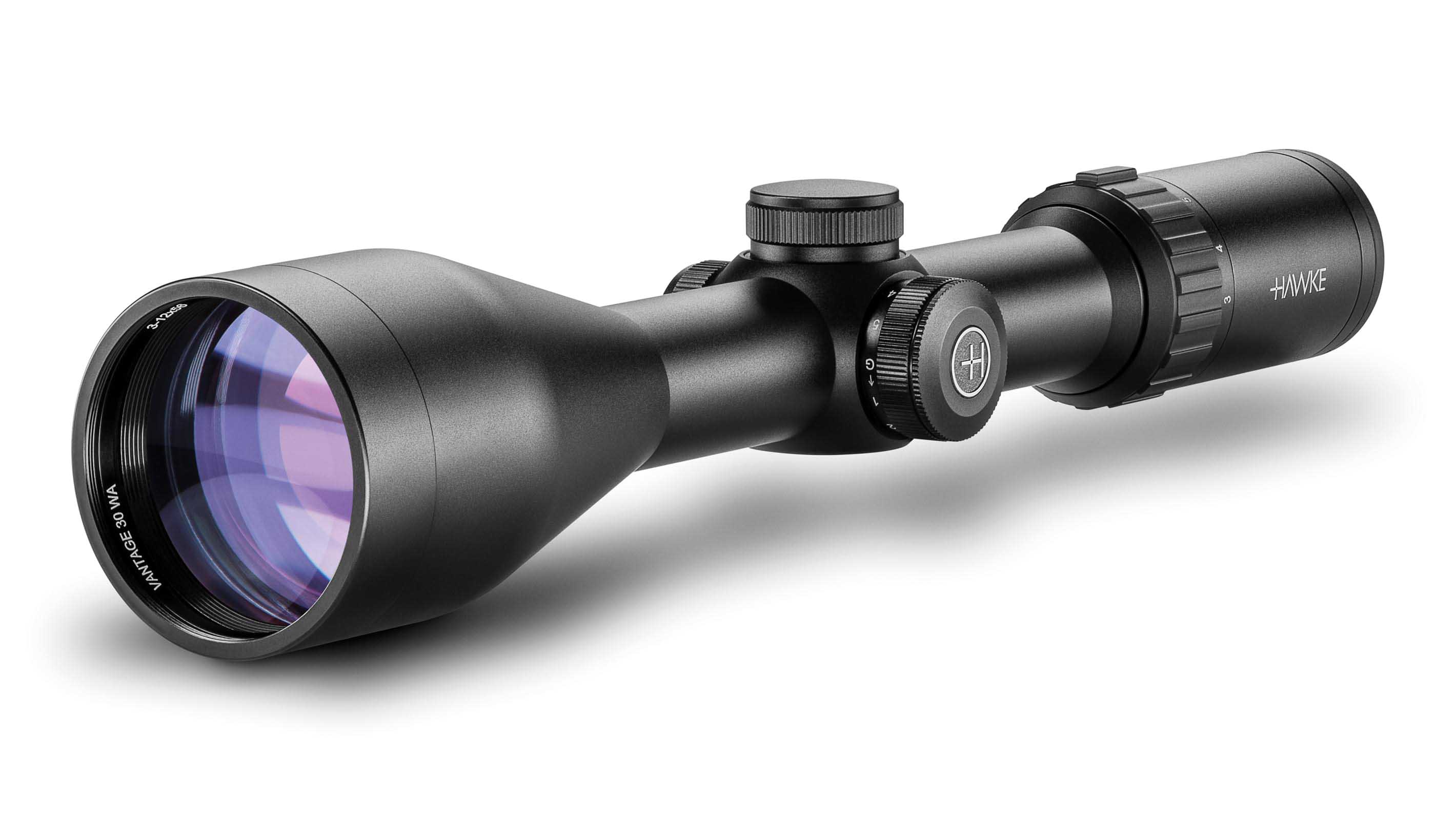

Vantage 30 WA 3-12x56 L4A Dot

Wide Angle optical system
11 layer Fully Multi-Coated optics for excellent clarity
Fixed parallax distance of 100 yards / 91 metres
30mm mono-tube chassis for superior strength
Glass etched reticle with red and green illumination
Rheostat on saddle offers 5 levels of brightness
1/4 MOA low-profile no-snag fingertip turrets
Fast focus eyebell and high torque zoom ring
Threaded objective/ocular for optional accessories

Chassis:

30mm Mono-tube

Optical System:

3-12x

Objective:

56mm

Reticle:

L4A Dot

Illumination:

Red / Green - 5 Levels

Focus/Parallax:

Fixed - 91m / 100yds

Field of View: m @100m / ft @100yds

14.3 - 3.6m / 42.8 - 10.7ft

Eye relief:

90mm / 3.5″

Length:

341mm / 13.4″

Weight:

669 g / 23.6 oz

Waterproof, Shockproof, Nitrogen purged.
All calibre rated.

Material:

Aluminium

Exit Pupil:

18 - 5mm / 0.7 - 0.2″

Ocular Type:

Fast Focus

Lens Coating:

Fully Multi-Coated - 11 Layers

Power Selector Style:

Knurled Posi-Grip

Focal Plane:

Second Focal Plane (SFP)

Warranty:

Hawke Worldwide Warranty

Elevation Increment:

1/4 MOA

Elevation Adjustment Range:

60 MOA

Windage Increment:

1/4 MOA

Windage Adjustment Range:

60 MOA

Turret Caps:

YES

Turret Type:

Low Profile

SUPPLIED WITH
Box
Instruction Manual
Reticle Booklet
Riflescope Alignment Booklet
Lens Covers
Lens Cloth
CR2032 Battery

DOWNLOADS

Instruction Booklet

PDF 2.0MB
